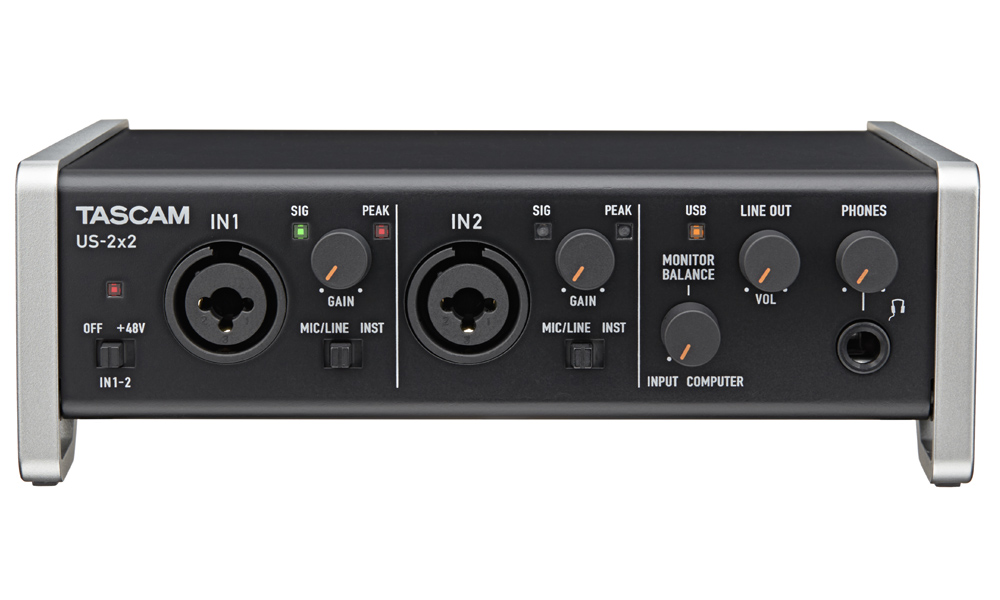

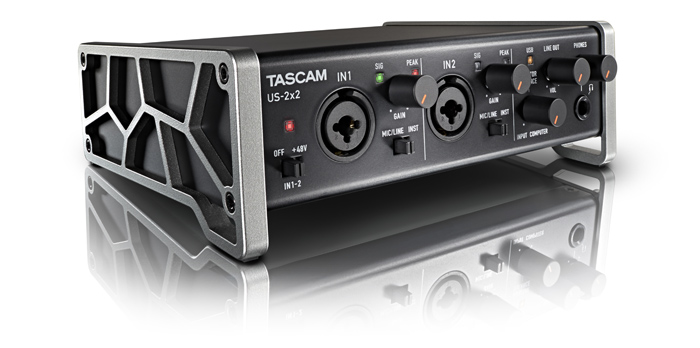

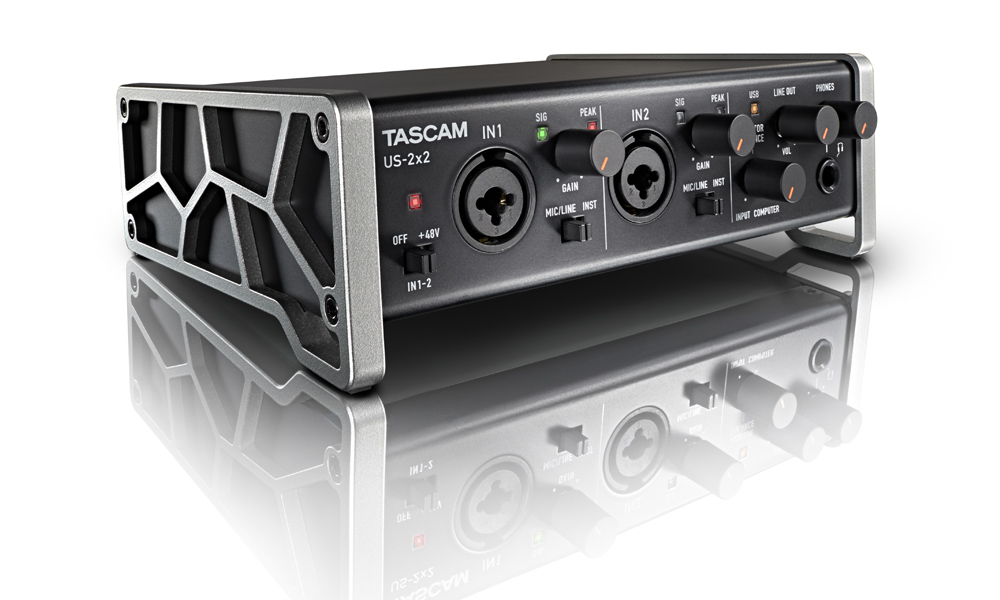

US-2x2
USB Audio/MIDI Interface (2 vstupy, 2 výstupy)
Tato jednoduchá zvuková karta je perfektní pro skládání hudby a obzvláště pro začátečníky. Nabízí seriózní možnosti nahrávání v kvalitě 24 bitů / 96 kHz, jednoduchou instalaci a ovládání a špičkové mikrofonní předzesilovače Ultra-HDDA.
US-2x2 lze použít jak s PC, tak i s iPadem a jinými iOS zařízeními. Stačí klasická kamerová redukce a dodatečný síťový adaptér TASCAM PS-P520, který je třeba přikoupit.
K US-2x2 je přibalený hudební software Sonar X3 LE aAbleton Live 9 Lite, takže můžete okamžitě začít nahrávat a skládat muziku.
Ke stažení
- Podrobný manuál v angličtině
- Firmware v1.01 – Mac
- Firmware v1.01 – Windows
- Driver v1.02 – poznámky
- Driver v1.02 – Windows
- Panel nastavení v1.02 pro OS X
Představení
Technické specifikace
| Audio resolution | ||
|---|---|---|
| Sampling frequencies | 44.1, 48, 88.2, 96 kHz | |
| Quantization bit depth | 16/24-bit | |
| Analogue inputs | ||
|---|---|---|
| Mic inputs (balanced) | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
|
| Input impedance | 2.2 kΩ | |
| Rated input level | −65 dBu (0.0004 Vrms) (gain knob at MAX) | |
| Rated input level | −8 dBu (0.3090 Vrms) (gain knob at MIN) | |
| Maximum input level | +8 dBu (1.9467 Vrms) | |
| Gain range | 57 dB | |
| Instrument inputs (unbalanced, MIC/LINE INST switch set to INST) | 6.3-mm standard TS stereo jacks (Tip: HOT, Sleeve: GND) |
|
| Input impedance | 1 MΩ or more | |
| Rated input level | −63 dBV (0.0007 Vrms) (gain knob at MAX) | |
| Rated input level | −6 dBV (0.5015 Vrms) (gain knob at MIN) | |
| Maximum input level | +10 dBV (3.162 Vrms) | |
| Gain range | 57 dB | |
| Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE) | 6.3-mm standard TRS stereo jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
|
| Input impedance | 10 kΩ | |
| Rated input level | −53 dBu (0.0017 Vrms) (gain knob at MAX) | |
| Rated input level | +4 dBu (1.228 Vrms) (gain knob at MIN) | |
| Maximum input level | +20 dBu (7.75 Vrms) | |
| Gain range | 57 dB | |
| Analogue outputs | ||
|---|---|---|

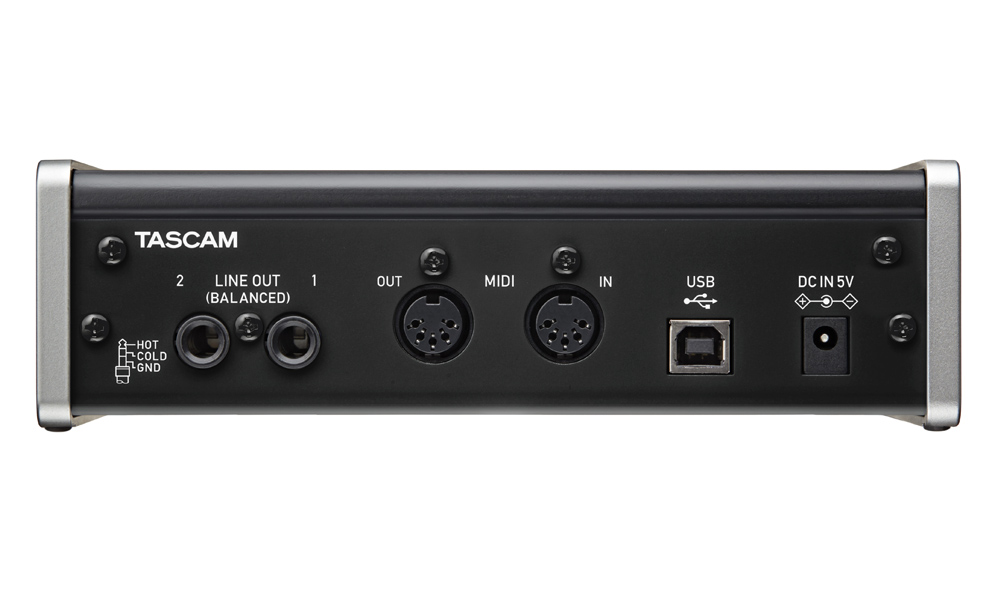

| Outputs (LINE OUT (BALANCED)) | 6.3-mm standard TRS stereo jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
|
| Output impedance | 110 Ω | |
| Rated output level | +4 dBu (1.273 Vrms) | |
| Maximum output level | +20 dBu (7.75 Vrms) | |
| Headphone output (PHONES) | 6.3-mm standard stereo jack | |
| Maximum output power | 18 mW + 18 mW or higher (THD+N 1% or less, into 32 Ω load) | |
| Control inputs/outputs | ||
|---|---|---|
| MIDI IN connector | 5-pin DIN | |
| Format | MIDI standard | |
| MIDI OUT connector | 5-pin DIN | |
| Format | MIDI standard | |
| USB | 4-pin USB B-type | |
| Transfer rate | USB 2.0 High Speed (480 MBit/s) | |
| Audio performance | ||
|---|---|---|
| Mic preamp EIN (Equivalent Input Noise) | −127 dBu or less (150 Ω termination, gain knob at MAX) |
|
| Frequency response (IN1-IN4 to LINE OUT (BALANCED) or Headphone (HP) output) | ||
| 20 Hz – 20 kHz +0 dB/–0.3 dB (–0.1 dB at 20 kHz) at fs = 44.1 kHz or 48 kHz, JEITA 20 Hz – 40 kHz +0 dB/–0.3 dB (–0.2 dB at 40 kHz) at fs = 88.2 kHz or 96 kHz, JEITA |
||
| S/N ratio | 101 dB or higher (MIC/LINE input to LINE OUT, gain knob at MIN, JEITA) |
|
| Distortion | 0.003 % or less (MIC/LINE input to LINE OUT, 1kHz sine wave, at nominal input level and maximum output level, JEITA) |
|
| Crosstalk | 95 dB or more (MIC/LINE input to LINE OUT, 1 kHz, JEITA) |
|
| Computer system requirements | ||
|---|---|---|
| Windows | ||
| Supported operating systems | Windows 8 (including 8.1) 32-bit Windows 8 (including 8.1) 64-bit Windows 7 32-bit SP1 or later Windows 7 64-bit SP1 or later (Windows Vista and Windows XP are not supported) |
|
| Computer hardware requirements | Windows computer with a USB 2.0 port | |
| CPU/processor speed | 2 GHz or faster dual core processor (x86) | |
| Memory | 2 GB or more | |
| CAUTION | Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions | |
| Mac OS X | ||
| Supported operating systems | OS X Mavericks (10.9.1 or later) OS X Mountain Lion (10.8.4 or later) |
|
| Computer hardware requirements | Apple Mac computer with a USB 2.0 port | |
| CPU/processor speed | 2 GHz or faster dual core processor | |
| Memory | 2 GB or more | |
| iOS devices | Apple devices running iOS 7 or later | |
| Supported audio drivers | ASIO 2.0, WDM (MME) Core Audio Core MIDI |
|
| Power supply and other specifications | ||
|---|---|---|
| Power supply | Supplied by computer over USB (When using with an iOS device, a separate AC adapter designed for use with this unit (TASCAM PS-P520, DC5V) is necessary.) |
|
| Power consumption | 2.5 W | |
| External dimensions (w × h × d) | 186 mm × 65 mm × 160 mm | |
| Weight | 1.1 kg | |
| Operating temperature range | 5–35 °C | |
| Bundled DAW software | SONAR LE (for Windows) Ableton Live Lite |
|
