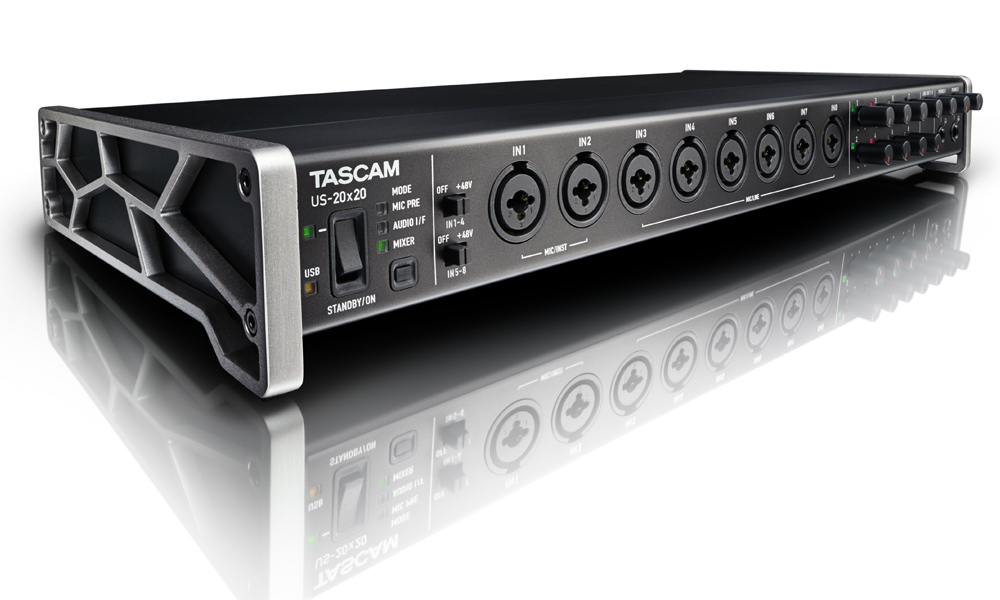

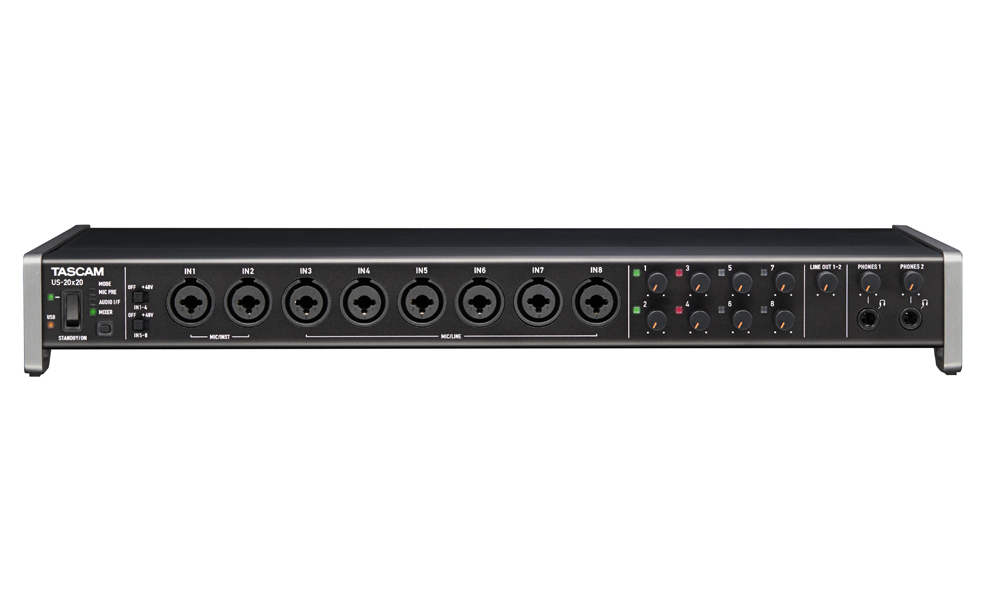

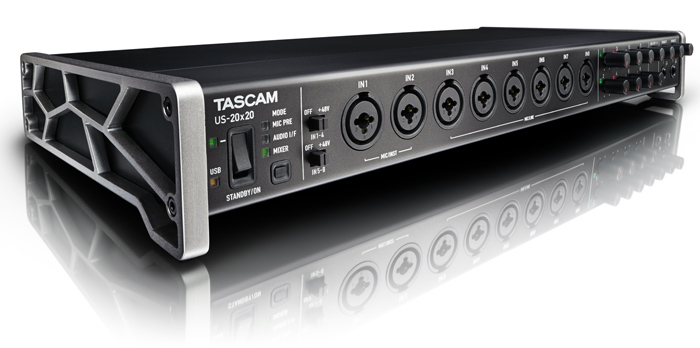

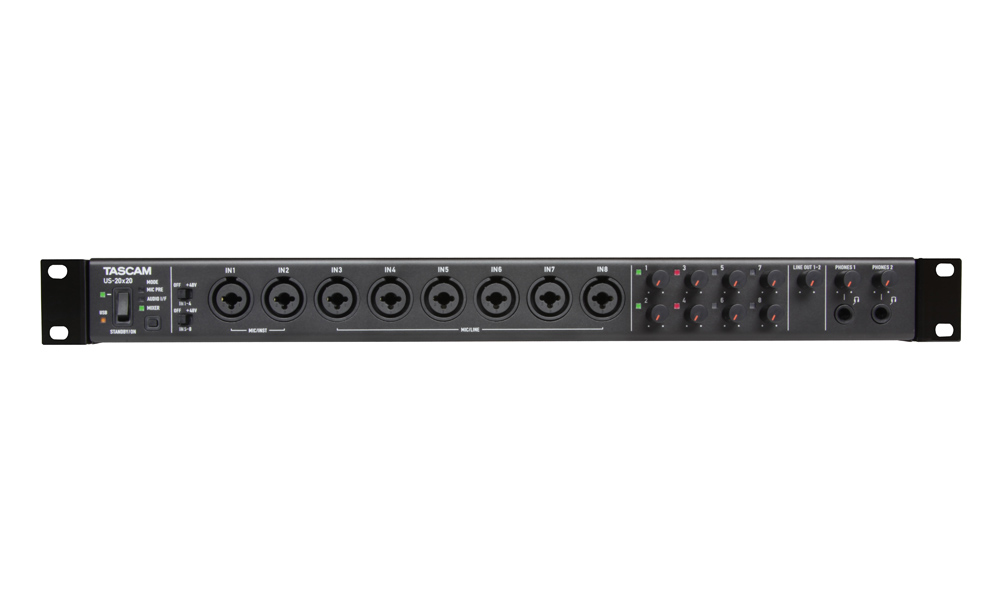

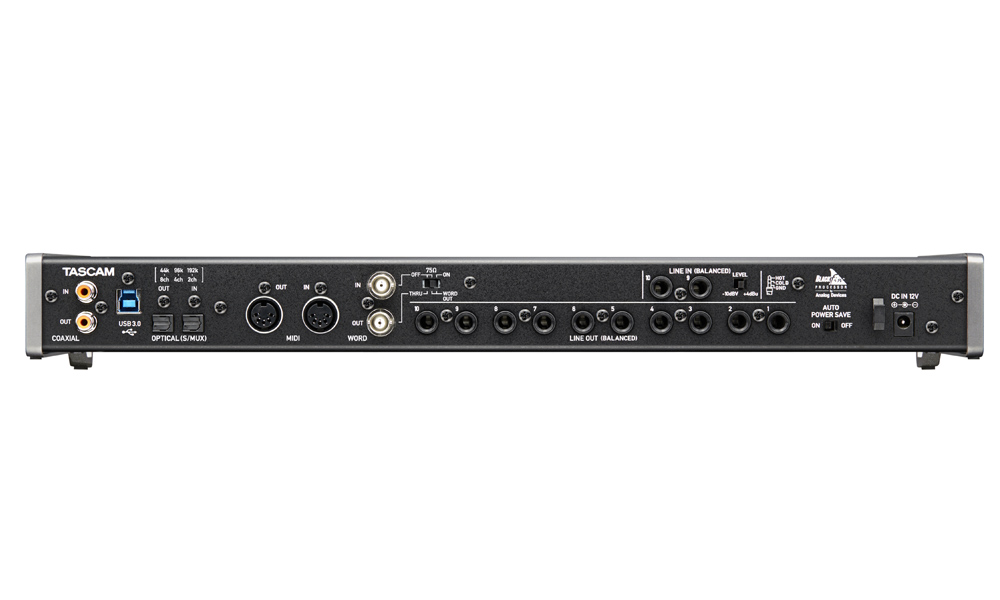

US-20x20
USB 3.0/2.0 Audio/MIDI Interface/Digitální mixážní pult (20 vstupů, 20 výstupů)
Tato profesionální zvuková karta je určena pro vážné zájemce o nahrávání a nahrávací studia. Nabízí nahrávání v kvalitě 24 bitů / 192 kHz, WORD CLOCK, intuitivní ovládání a 8 špičkových mikrofonních předzesilovačů Ultra-HDDA s gainem až 56 dB. Dále jsou zde další 2 symetrické linkové vstupy, 8 optických digitálních vstupů a výstupů S/MUX, 2 koaxiální digitální vstupy a výstupy S/PDIF.
US-20x20 lze použít jak s PC, tak i s iPadem a jinými iOS zařízeními. Stačí klasická kamerová redukce a přiložený síťový adaptér.

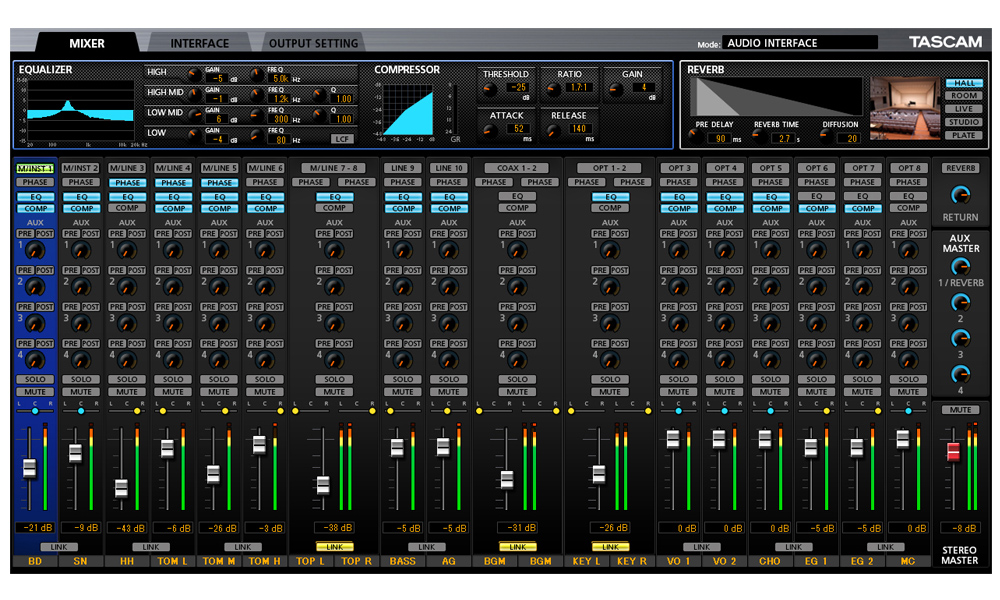

Díky pokročilému Blackfin DSP softwaru můžete nasadit čtyřpásmový parametrický ekvalizér a kompresor na každý kanál, reverb a bezlatenční monitoring umožní pohodlný poslech při nahrávání.

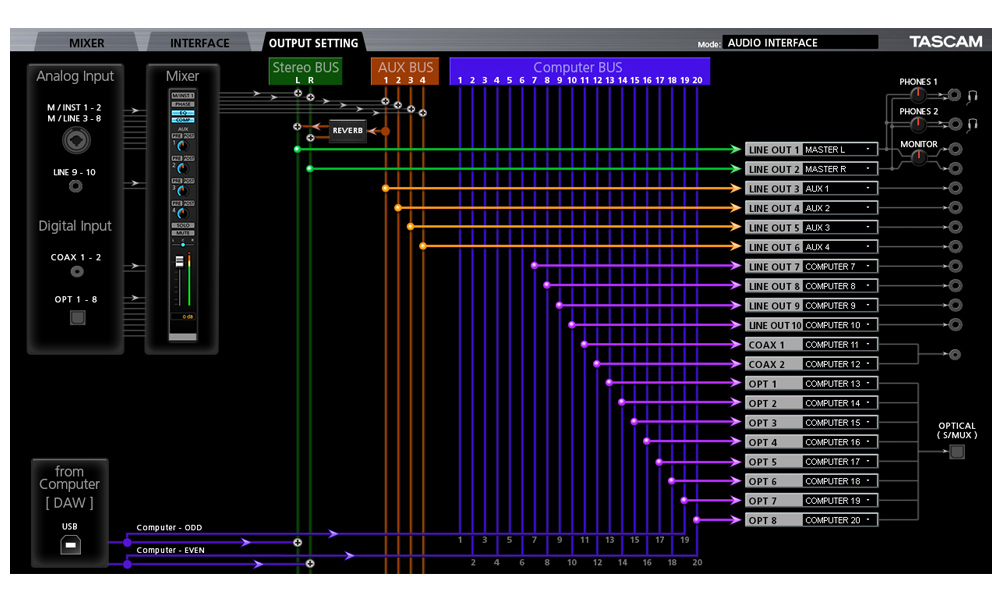

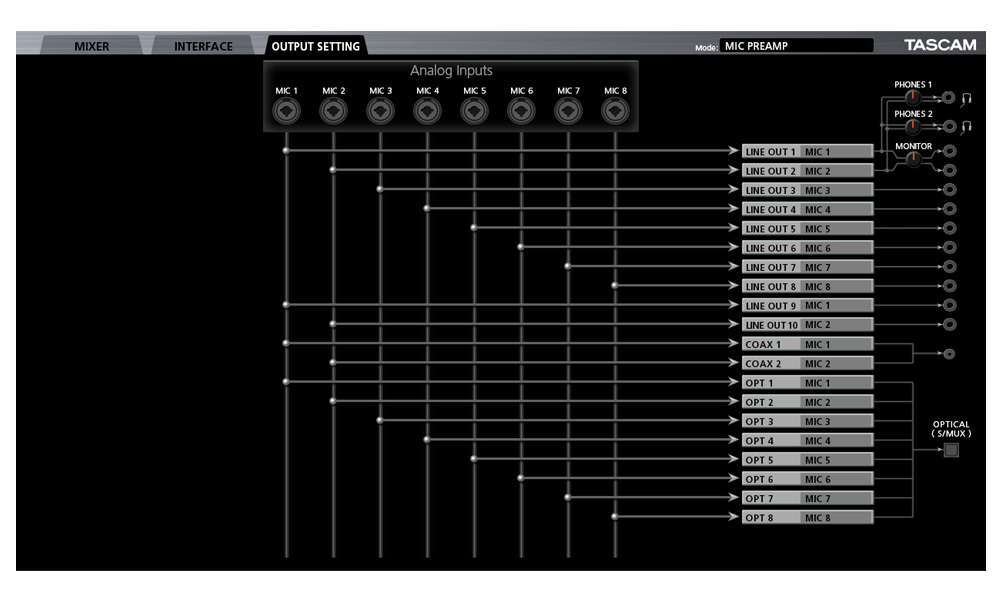

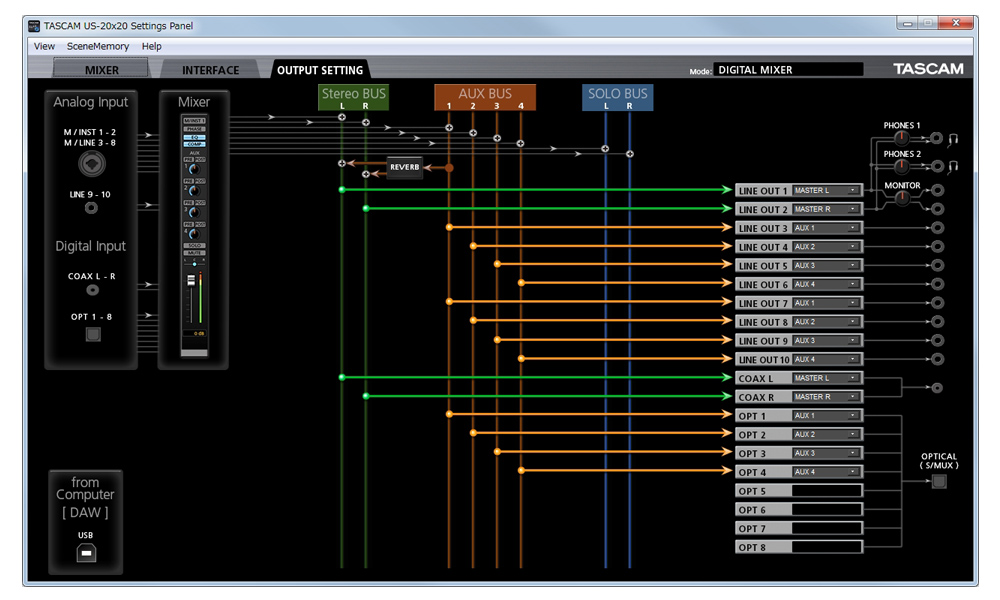

US-20x20 má 3 funkční módy: zvuková karta, mikrofonní předzesilovač nebo mixážní pult.
Ke stažení
- Podrobný manuál v angličtině
- Firmware v1.02 – poznámky
- Firmware v1.02 – Mac
- Firmware v1.02 – Windows
- Driver v1.02 – Windows

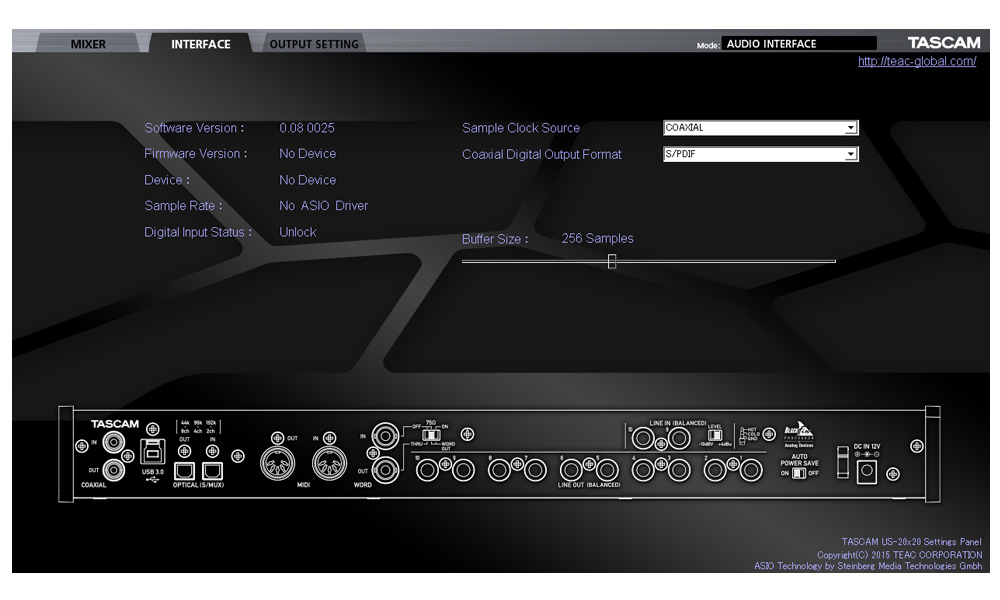

- Panel nastavení v1.02 pro OS X
Představení
Technické specifikace
| General | ||
|---|---|---|
| Sampling frequencies | USB 3.0: 44.1/48/88.2/96/176.4/192 kHz USB 2.0: 44.1/48/88.2/96 kHz |
|
| Quantization bit depth | 16/24-bit | |
| Analogue inputs | ||
|---|---|---|
| Mic inputs (balanced, IN1–IN2) | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) | |
| Input impedance | 2.4 kΩ | |
| Nominal input level (gain knob at MAX) | −68 dBu (0.0003 Vrms) | |
| Nominal input level (gain knob at MIN) | −12 dBu (0.195 Vrms) | |
| Maximum input level | +8 dBu (1.947 Vrms) | |
| Gain range | 56 dB | |
| Instrument inputs (unbalanced, IN1–IN2) | 6.3mm (1/4") standard TS jacks (Tip: HOT, Sleeve: GND) | |
| Input impedance | 1 MΩ or more | |
| Nominal input level (gain knob at MAX) | −68 dBV (0.0004 Vrms) | |
| Nominal input level (gain knob at MIN) | −12 dBV (0.251 Vrms) | |
| Maximum input level | +8 dBV (2.512 Vrms) | |
| Gain range | 56 dB | |
| Line inputs (balanced, IN1–IN8) | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) | |
| Input impedance | 10 kΩ | |
| Nominal input level (gain knob at MAX) | −52 dBu (0.0019 Vrms) | |
| Nominal input level (gain knob at MIN) | +4 dBu (1.228 Vrms) | |
| Maximum input level | +24 dBu (12.282 Vrms) | |
| Gain range | 56 dB | |
| Line inputs (unbalanced, LINE IN 9–10, LEVEL switch set to −10dBV) | 6.3mm (1/4") standard TS jacks (Tip: HOT, Sleeve: GND) | |
| Input impedance | 10 kΩ | |
| Nominal input level | −10 dBV (0.3162 Vrms) | |
| Maximum input level | +10 dBV (3.162 Vrms) | |
| Line inputs (balanced, LINE IN 9–10, LEVEL switch set to +4dBu) | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) | |
| Input impedance | 10 kΩ | |
| Nominal input level | +4 dBu (1.228 Vrms) | |
| Maximum input level | +24 dBu (12.282 Vrms) | |
| Analogue outputs | ||
|---|---|---|
| Line outputs (balanced, LINE OUT 1–10) | 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) | |
| Output impedance | 100 Ω | |
| Nominal output level | +4 dBu (1.228 Vrms) | |
| Maximum output level | +24 dBu (12.277 Vrms) | |
| Headphones outputs (PHONES 1/2) | 6.3mm (1/4") standard stereo jacks | |
| Maximum output power | 70mW + 70mW (THD+N 0.1% or less, into 32 Ω load) | |
| Frequency response (Input to PHONES 1/2 output) | ||
| At 44.1 kHz and 48 kHz | 20 Hz – 20 kHz, ±1.0 dB (JEITA) | |
| At 88.2 kHz and 96 kHz | 20 Hz – 40 kHz, ±2.0 dB (JEITA) | |
| At 176.4 kHz and 192 kHz | 20 Hz – 80 kHz, ±5.0 dB (JEITA) | |
| Digital audio inputs and outputs | ||
|---|---|---|
| COAXIAL IN | RCA pin jacks | |
| Signal format | IEC 60958-3 (S/PDIF) | |
| Input impedance | 75 Ω | |
| Input level | 0.5 Vpp/75 Ω | |
| COAXIAL OUT | RCA pin jacks | |
| Signal formats | IEC 60958-3 (S/PDIF) or IEC 60958-4 (AES/EBU), selectable on the Settings Panel | |
| Output impedance | 75 Ω | |
| Output level | 0.5 Vpp/75 Ω | |
| OPTICAL (S/MUX) IN/OUT | OPTICAL (JEITA RC-5720C) | |
| Signal format | Multi-channel optical format (supports S/MUX at 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz) | |
| Other inputs and outputs | ||
|---|---|---|
| USB | USB 3.0 B type | |
| Transfer rate | USB 3.0 Super Speed (5 GBit/s) | |
| MIDI IN | 5-pin DIN | |
| Format | standard MIDI | |
| MIDI OUT | 5-pin DIN | |
| Format | standard MIDI | |
| WORD IN | BNC (Termination on/off switch included) | |
| Input voltage | 2.0Vpp - 5.0Vpp | |
| Input impedance | 75 Ω ±10 % | |
| Permitted frequency deviation during external synchronization | ±100 ppm | |
| WORD OUT | BNC (OUT/THRU switch included) | |
| Output voltage | 2.0 Vpp (into 75Ω load) | |
| Output impedance | 75 Ω ±10 % | |
| Sampling frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | |
| Audio performance | ||
|---|---|---|
| Mic amp EIN (equivalent input noise) | −125 dBu or lower | |
| Frequency response (Input to LINE OUT (BALANCED)) | ||
| At 44.1/48 kHz | 20 Hz – 20 kHz, ±0.5 dB (JEITA) | |
| At 88.2/96 kHz | 20 Hz – 40 kHz, ±0.5 dB (JEITA) | |
| At 176.4/192 kHz | 20 Hz – 80 kHz, ± 5 dB (JEITA) | |
| S/N ratio | 104 dB or higher (MIC/LINE IN to LINE OUT, gain knob at MIN, JEITA) | |
| Distortion | 0.004 % or less (MIC/LINE IN to LINE OUT, 1 kHz sine wave, at nominal input level and maximum output level) | |
| Crosstalk | 100 dB or more (MIC/LINE IN to LINE OUT, 1 kHz) | |
| Computer system requirements | ||
|---|---|---|
| Important note: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions | ||
| Windows | ||
| Supported operating systems | Windows 8 (including 8.1) 32-bit Windows 8 (including 8.1) 64-bit Windows 7 32-bit SP1 or later Windows 7 64-bit SP1 or later (Windows Vista and Windows XP are not supported) |
|
| Computer hardware requirements | Windows computer with a USB 3.0 or USB 2.0 port | |
| CPU/processor speed | 2 GHz or faster dual core processor (x86) | |
| Memory | 2 GB or more | |
| Screen resolution | 1280×800 pixels or more | |
| Mac OS X | ||
| Supported operating systems | OS X Yosemite (10.10.1 or later) OS X Mavericks (10.9.5) OS X Mountain Lion (10.8.5) |
|
| Computer hardware requirements | Mac with a USB 3.0 or USB 2.0 port | |
| CPU/processor speed | 2 GHz or faster dual core processor | |
| Memory | 2 GB or more | |
| Screen resolution | 1280×800 pixels or more | |
| Apple iOS devices | ||
| Operating system | iOS 7 or later | |
| Supported audio drivers | Windows: USB Audio Class 2.0, ASIO 2.0, WDM (MME), MIDI Mac: Core Audio, Core MIDI |
|
| Power supply and other specifications | ||
|---|---|---|
| Power supply | DC12V AC adapter (GPE248-120200-Z) | |
| Power consumption | 12 W | |
| Dimensions (W × H × D) | 445 mm × 59 mm × 222 mm (with standard frame attached) 483 mm × 44 mm × 222 mm (with rack mount adapters attached) |
|
| Weight | 2.8 kg | |
| Permissible operating temperature range | 5–35 °C | |
